Streamline body height, stylized grill, with a quiet running motor and infinite speed control. Mitered front allows cabinets on side of hood to open fully. 60 watt maximum cook top light with two brightness settings (bulb not included). Comes equipped for 3 1/4" x 10" vertical or horizontal ducting, (duct adapter and damper included). Can be converted to ductless operation with the addition of a charcoal odor filter, Quiet Zone Series model CF-06, (not included), or to a 7" round, for vertical ducting, with the addition of model E-22A collar and damper, (not included). 260 CFM, 6.0 Sones/Vertical. 250 CFM, 5.5 Sones/Horizontal. Uses a 9" axial fan blade, which is similar in appearance to a paddle style fan, but incorporates an outer ring around the blades. This gives it increased performance with a low sound level. UL Listed. HVI 2100 Certified. Uses #GF-06 filter. Dimensions: 30"W x 6"H.

Range hoods ducted/convertible under cabinet"advantage" 30 inches w x 6 inches h color=white Low profile contemporary style with a 60 watt maximum cook top light (bulb not included) and a two speed fan control. Comes equipped for 3- 1/4 inches x 10 inches vertical or horizontal ducting, (duct adapter and damper included). Can be converted to ductless operatio n with the addition of model RF-34 charcoal odor filter, (not included), or to a 7 inches round, for vertical ducting, with the addition of model E-22A collar and damper, (not included). 180 CFM, 7.0 Sones/Horizontal, 180 CFM, 7.5 Sones/Vertical. UL Listed. HVI 2100 Certified. Uses #RF-35 filter. Low-profile contemporary style with a 60 W maximum cook top light (bulb not included) and a two speed fan control. Comes equipped for 3-1/4 in x 10 in vertical or horizontal ducting, (duct adapter and damper included). Can be converted to ductless operation with the addition of model RF-34 charcoal odor filter, (not included) or to a 7 in round, for vertical ducting, with the addition of model E-22A collar and damper, (not included). 180 cfm, 7 sones/horizontal, 180 cfm, 7.5 sones/vertical. UL listed. HVI 2100 certified. Uses #RF-35 filter. Low profile contemporary style with a 60 watt maximum cook top light (bulb not included) and a two speed fan control. Comes equipped for 3-1/4" x 10 inches vertical or horizontal ducting, (duct adapter and damper included). Can be converted to ductless operatio n with the addition of model RF-34 charcoal odor filter, (not included), or to a 7 inches round, for vertical ducting, with the addition of model E-22A collar and damper, (not included). 180 CFM, 7.0 Sones/Horizontal, 180 CFM, 7.5 Sones/Vertical. UL Listed. HVI 2100 Certified. Uses #RF-34S filter.

Aluminum grease filter for use with DS, AV, AR Series.

Range hoods ducted/convertible under cabinet"advantage" 30 inches w x 6 inches h color=stainless steel Low profile contemporary style with a 60 watt maximum cook top light (bulb not included) and a two speed fan control. Comes equipped for 3- 1/4 inches x 10 inches vertical or horizontal ducting, (duct adapter and damper included). Can be converted to ductless operatio n with the addition of model RF-34 charcoal odor filter, (not included), or to a 7 inches round, for vertical ducting, with the addition of model E-22A collar and damper, (not included). 180 CFM, 7.0 Sones/Horizontal, 180 CFM, 7.5 Sones/Vertical. UL Listed. HVI 2100 Certified. Uses #RF-35 filter. Low-profile contemporary style with a 60 W maximum cook top light (bulb not included) and a two speed fan control. Comes equipped for 3-1/4 in x 10 in vertical or horizontal ducting, (duct adapter and damper included). Can be converted to ductless operation with the addition of model RF-34 charcoal odor filter, (not included) or to a 7 in round, for vertical ducting, with the addition of model E-22A collar and damper, (not included). 180 cfm, 7 sones/horizontal, 180 cfm, 7.5 sones/vertical. UL listed. HVI 2100 certified. Uses #RF-35 filter. Low profile contemporary style with a 60 watt maximum cook top light (bulb not included) and a two speed fan control. Comes equipped for 3-1/4" x 10 inches vertical or horizontal ducting, (duct adapter and damper included). Can be converted to ductless operatio n with the addition of model RF-34 charcoal odor filter, (not included), or to a 7 inches round, for vertical ducting, with the addition of model E-22A collar and damper, (not included). 180 CFM, 7.0 Sones/Horizontal, 180 CFM, 7.5 Sones/Vertical. UL Listed. HVI 2100 Certified. Uses #RF-34S filter.

Streamline body height, with an infinite speed control. 60 W maximum cook top light with two brightness settings (bulb not included). Comes equipped for 3-1/4 in x 10 in vertical or horizontal ducting, (duct adapter and damper included). Can be converted to ductless operation with the addition of a charcoal odor filter, (model RF-34, not included) or to a 7 in round, for vertical ducting, with the addition of model E-22A collar and damper, (not included). 200 cfm, 6.5 Sones horizontal/vertical. UL listed. HVI 2100 certified. Uses #RF-35 filter.

Under cabinet range hood. Two speed motor control. Included, easily removable aluminum mesh grease filter captures grease and debris. Can be ducted either horizontally or vertically. Utilizes up to a 60 watt type A19 lamp (not included).

Features

Responsive Sensor
This hood uses a responsive sensor that can detect excess heat coming from the cooking surface and responds automatically to ensure proper
ventilation.

Perimeter Venting
Premium perimeter venting uses narrow channels to create natural suction, using less energy from the motor to achieve the same level of efficiency.

Sleek Design
Make a statement with this beautiful design with signature Electrolux pinstriping, soft LED lighting and glass touch controls.

Premium LED Lighting
Keep the food on your cooktop clearly visible with premium LED lighting.

Quieter Operation
Stay connected to your guests while you cook with the quieter fan operation for powerful performance with less noise.

Approximate Dimensions (Inches)
Height: 53 29/32
Width: 35 3/4
Depth: 19 45/64

Features
Responsive Sensor
Responsive Sensor
This hood uses a responsive sensor that can detect excess heat coming from the cooking surface and responds automatically to ensure proper ventilation Perimeter Venting
Perimeter Venting
Premium perimeter venting uses narrow channels to create natural suction, using less energy from the motor to achieve the same level of efficiency Sleek Design
Sleek Design
Make a statement with this beautiful design with signature Electrolux pinstriping, soft LED lighting and glass touch controls
Premium LED Lighting
Premium LED Lighting
Keep the food on your cooktop clearly visible with premium LED lighting Quieter Operation
Stay connected to your guests while you cook with the quieter fan operation for powerful performance with less noise
Platinum Star(R) Limited Warranty
Our exclusive warranty offers peace of mind for registered owners with two years of coverage on replacement parts. * One-year standard parts warranty plus an additional year with product registration within 60 days of purchase. See limited warranty for details.
Specifications
Product Line
Ventilation

Power Type
Electric 120v

Size
36"

Installation Type
Under Cabinet

Color
Stainless Steel

Collapse group heading
Installation
Power Supply Connection Location
Top Center

Power Supply Connection Type
Hard Wired

Collapse group heading
Electrical Specifications
Amps @ 120 Volts
2.9 Amps

Voltage Rating
120 V

Watts @ 120 Volts
342 Watts

Collapse group heading
Ventilation System
Ductless Vent
Yes

Exhaust Fan Speeds
3

Minimum Air Flow Capacity
211 CFM

Maximum Air Flow Capacity
412 CFM

Minimum Sones Rating
2.3 sone

Maximum Sones Rating
8.68 sone

Charcoal Filter Included
Yes

Collapse group heading
Dimensions and Volume
Height
53 9/10"

Width
35 3/4"

Depth
19 7/10"

Collapse group heading
Safety Certifications and Approvals
CSA Listed
Yes

RoHS
Yes

Collapse group heading
Connectivity
??Wi-Fi Enabled
No

Collapse group heading
Controls
Control Type
Glass Touch

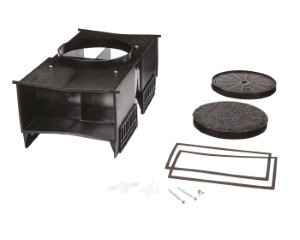

Convert hood from exterior venting to recirculating

Charcoal filter absorbs unwanted odors generated while cooking

Includes 2 charcoal filters. For best performance, replace the charcoal filter every 6 months.

Simple installation with anchors, screws, filters, and sealing strips included
For use with the 30" or 36" Electrolux Wall Mount T Shape Hood

Smudge-Proof(R) Stainless Steel Smudge-Proof(R) Stainless Steel Resists fingerprints and cleans easily.
Frigidaire Professional 30'' Under Cabinet Range Hood
PRODUCT DIMENSIONS
Height 10-1/2"
Width 30"
Depth 20"
MORE EASY-TO-USE FEATURES
PowerPlus(TM) 3-Speed Fan Powerful air flow at 3 different speeds -- quietly moves up to 400 cu. ft. of air per minute.
PowerBright(TM) LED Cooktop Lighting Clear, bright view of your cooktop workspace with LED lighting for seamless meal preparation. Offers 3 different brightness levels.
Stainless Steel Filters For consistently clean air circulation, use our removable, dishwasher safe filters.

General Specifications
Filter Type Dishwasher-Safe Stainless Steel
Mounting Type Easy Fit
PROP 65 Label Yes
Power Type None
Size 30''
Installation Type Free-Standing
Collection Frigidaire Professional
Electrical Specifications
Amps @ 120 Volts 3.25
Circuit Amps 15.0
Connected Load @ 120V 0.33
Voltage Rating 120V 60Hz
Watts @ 120 Volts 330
Certifications & Approvals
Agency Approval(All Brands) UL/cUL
UL/cUL (ElxEProEDesFrig) Yes - cULus
Ventilation/Light System
Air Discharge Vertical
AutoStart Heat Sensor No
Blower Type Fan
Charcoal Filter Optional
Cooktop Light Yes
Duct Diameter 3-1/4" x 10"
Duct/Ductless Vent No
Exhaust Duct External
Exhaust Fan Capacity 400
Exhaust Fan Speeds 3
Filter Type Dishwasher-Safe Stainless Steel
Filters 2
Lights 4
Non-stick Coating Yes
Vent Style Hidden
Work-Area Light LED
Controls
Control Type Knob
Electronic Controls w/ Display No
Dimensions: Cut-Out
Height 10-3/4"
Dimensions: Exterior
Depth 20"
Height 10-1/2"
Width 30"

Dual-Centrifugal Fans Move air quietly and efficiently 0 up to 400 cu. ft. of air per minute.
Halogen Lighting For bright illumination of the cooktop surface.
Washable Filters Dishwasher safe for easy cleaning. The aluminum filter provides strength and durability not found in foam filters.
Frigidaire 30'' Stainless Canopy Wall-Mounted Hood
PRODUCT DIMENSIONS
Height 31-11/16"
Width 29-7/8"
Depth 19-11/16"

General Specifications
Filter Type Dishwasher-Safe
PROP 65 Label Yes
Power Type Electric
Size 30''
Installation Type Wall Mounted
Collection Frigidaire
Electrical Specifications
Amps @ 120 Volts 4
Circuit Amps 15
Connected Load (kW Rating) @ 120V 0.516
Voltage Rating 120V 60Hz
Watts @ 120 Volts 520
Certifications & Approvals
Agency Approval UL/cUL
UL/cUL Approval Yes - cULus
Vent & Light System
Blower Type Centrifugal
Duct Diameter 6"
Ducted / Ductless Vent Installation Yes
Exhaust Duct Convertible
Exhaust Fan Capacity (CFM) 400
Exhaust Fan Speeds 3
Filters 2
Lights 2
Sones Rating 3.63 to 7.94 (1 to 3 speeds)
Sound Level (dBA) 58.5 to 69.9 (1 to 3 speeds)
Work-Area Light Halogen Lighting
Controls
Control Buttons 5
Electronic Controls with LCD Display No
Accessories
Recirculation Kit for Wall-Mount Hoods Stainless - Optional order item no. FHWRKT55LS
Wall-Mount Extended Kit Stainless - Optional order item no. FHW10X55LS
Exterior Dimensions
Depth 19-11/16"
Height 31-11/16"
Height (Min.) 31-11/16"
Height (with Flue Extension) 45"
Width 29-7/8"
Cut-Out Dimensions
Cut-Out Height 0

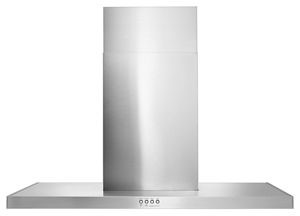

36" Stainless Steel Wall Mount Flat Range Hood

This stainless steel wall mount kitchen hood looks great and provides the right amount of ventilation for every meal you prepare thanks to the 3-speed, 400 CFM motor class. Bright, long-lasting LED task lighting makes it easy to see what you're cooking. Plus, the range hood's convertible ventilation means you can vent vapors and odors outside or filter them and recirculate the air, depending on your kitchen ventilation system setup. When venting at low speed, sound levels can get as low as 44 dBA.1


Features

LED Task Lighting

Bright, long-lasting LED task lighting makes it easy to see what you're cooking.

Grease filter

The grease filter helps trap unwanted grease and helps remove odors.

3-Speed, 400 CFM Motor Class
Three fan speeds provide the right amount of ventilation for every meal you prepare.

Convertible Ventilation (Recirculating or Vented)

Vent vapors and odors outside or filter them and recirculate the air, depending on your kitchen's setup.
Additional Features

LED Task Lighting

Bright, long-lasting LED task lighting makes it easy to see what you're cooking.

Grease filter

The grease filter helps trap unwanted grease and helps remove odors.

3-Speed, 400 CFM Motor Class

Three fan speeds provide the right amount of ventilation for every meal you prepare.

Convertible Ventilation (Recirculating or Vented)

Vent vapors and odors outside or filter them and recirculate the air, depending on your kitchen's setup.

44 dBA (.7 Sones) at Low Speed3

Keep the kitchen quiet, even when venting at the highest speed. At maximum speed, sound level is 65 dBA (5.2 sones).2
3 Keep the kitchen quiet, even when venting at the highest speed. At maximum speed, sound level is 69 dBA (5.6 sones).
